GCM-R3AR Chamfered edge machine
GCM-R3AR Chamfered edge machine introduction:

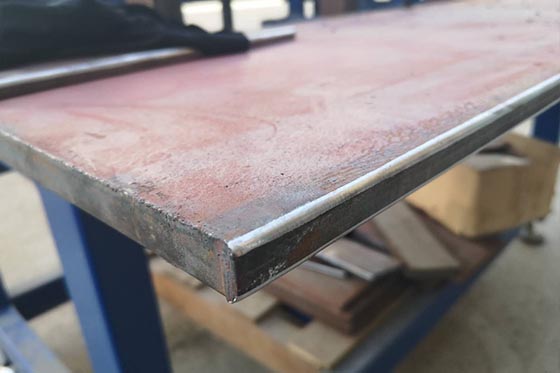

The chamfered edge machine is processing R3 for edge, feed speed 0~6m/min
Power Supply:AC380V 50HZ
Total Power:1900W
Feed Power:400W
Spindle Speed:2800r/min
Spindle Power:2*750W
Clamping Thickness:8~60mm
Clamping Width:≥100mm
Processing Length:≥300mm

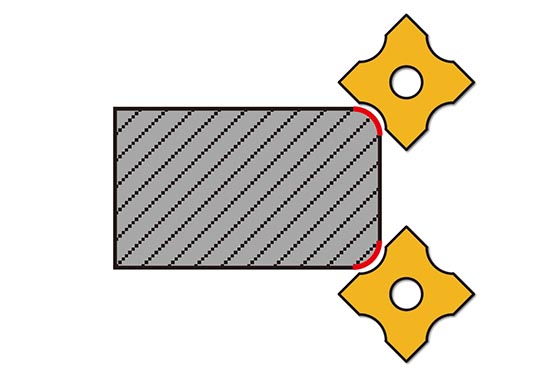

Cutter Diameter: R3/R2
Cutter Plate:2*φ60mm
Cutter Qty:8*3pcs
Worktable Height:730~790mm
Area Covered:1000*1000mm
