Processing speed: 0~6000mm/min， Chamfered edge machine, rounding machine
NEW GCM-R3TD rounding machine Powe Technical parameters:
Power Supply：AC380V 50HZ
Total Power：24000W
Spindle Power: 2*1100W
NEW GCM-R3TD chamfered edge machine Processing Technical parameters
Clamping Thickness：8~60mm
Clamping Width:＞100mm
Processing Length：＞300mm
Processing Capacity：C2/C3/R3/R2
Cutter Diameter：2*φ80mm
Cutter Qty：2*6pcs
Worktable Height：840~900mm
Area Covered：1480*1140mm
NEW GCM-R3TD rounding machine feature:

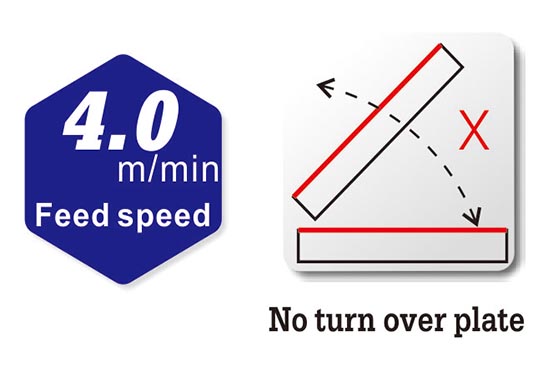

Efficient processing speed 0~6.0m/min
Reduce labor intensity, 1machine=4-6 persons
Once feed can be finished both edges

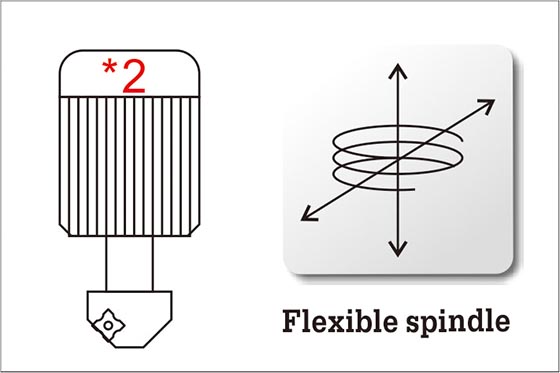

Flexible cutting spindle, saving blade
Even R edge, No processing stress
Cold cutting, Processed edge Ra 3.2~6.3

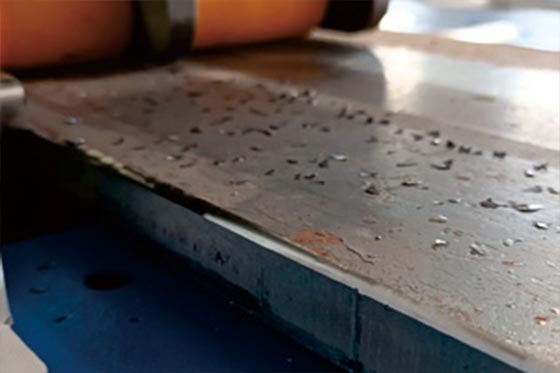

NEW GCM-R3TD rounding machine processing case:
