Square tube and pipe tube bevelling machine，Square pipe range: 80~300mm， Pipe bevel range: 80~300mm

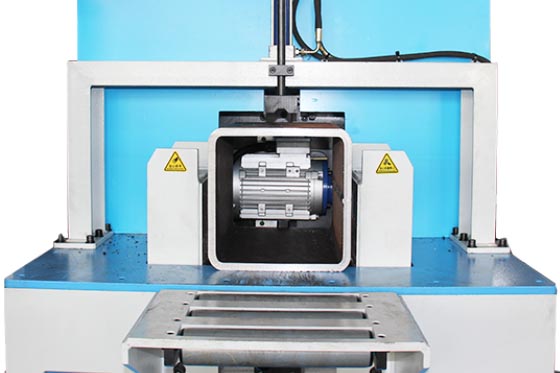

AAbout of GPM-ST300 Square pipe and pipe beveling machine:
This model is designed for pipeline and square pipe beveling machine, No need to replace accessories for processing pipe and square pipe bevel, and the dual use of one machine reduces procurement costs. High groove efficiency and surface smoothness Ra3.2~6.3. This product is mainly used in the prefabrication groove process of pipeline processing workshops, with simple and safe operation, and can be easily operated by one worker.
GPM-ST300 Square tube and pipe tube bevelling machine technical parameters:
Power suply: AC380V 50HZ
Air Power: 0.5Mpa
Total power: 5000 W
Processing wall thickness: 5~20mm

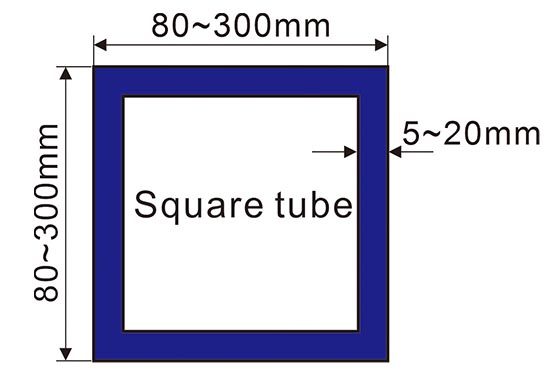

Processing square tube model: 80*80~300*300mm

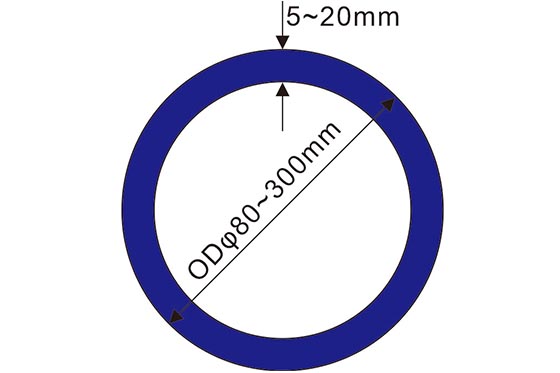

Processing pipe tube model: φ80~300mm
Processing Rectangular pipeline: L: W<1.5
Bevelling angle: 30degree、37.5degree、45degree (selection)
Cutter head: 100mm
Net weight: 1300kg

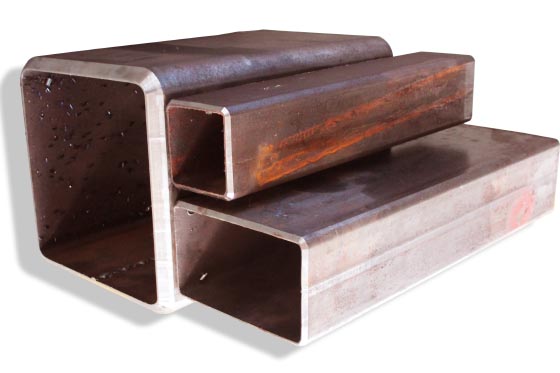

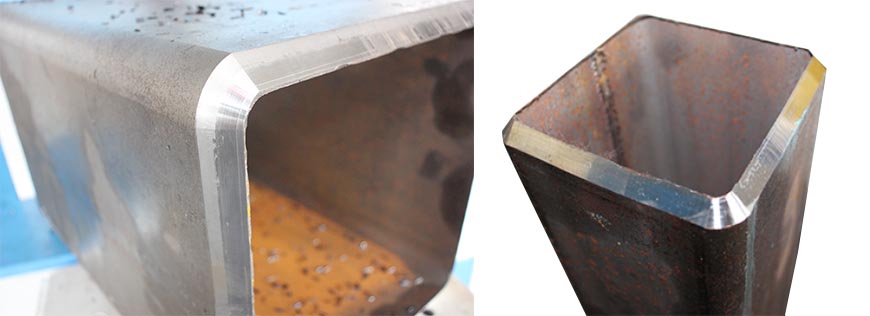

GPM-ST300 Pipe beveling machine and Square tube beveling machine processing case:
