Flat steel bevelling machine, processing bevel speed: 1200mm/min

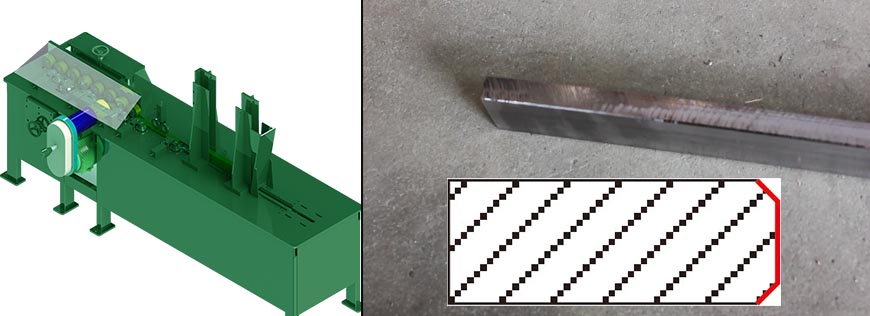

GMM-NS1701 Flat Steel Milling Machine/Flat Steel Beveling Machine Product Introduction:
This is a non-standard customized beveling equipment. The customer is a Malaysian automobile manufacturer. According to the customer's requirements, the equipment can complete the beveling and side milling of the upper and lower edges with a single feed. The angle of the upper and lower edges is 45 degrees, the chamfering depth is 2mm, the processing speed is 1200mm/min, and the continuous automatic feeding is achieved.
GMM-NS1701 Flat steel edge milling machine， Flat steel bevelling machine technical parameters
Power supply: AC380V 50HZ
Total power: 4500W
Spindle rotation: 1450r/min
Cutter head qty: 3pcs
Flat steel width: 32mm
Flat steel thickness: 12m
Flat steel length: 490~660mm
Fed speed: 0~2000mm/min
Worktable height: 900mm
Machine size: 2140*920*1200mm
Net weight: 800kg

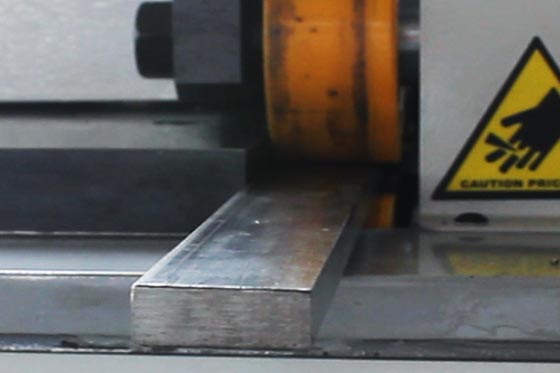

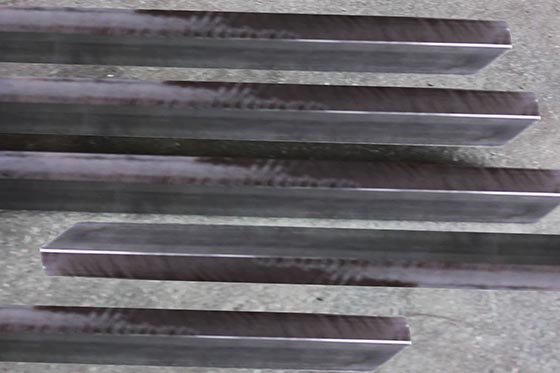

GMM-NS1701Auto Flat Steel Milling Machine/Flat Steel Beveling Machine processing case:
